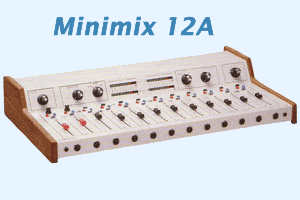

- Aluminum case - Oak endbells
- 2 Stereo output buses
- Mono output
- 12 plug-in slide pots
- 25 Stereo inputs
- 10 Unbalanced stereo phono jacks for consumer equipment
- 15 High-level balanced pro-stereo inputs
- 2 Dedicated mike pots with pan
- All VCA operated
- Cue amplifier/speaker built in
- Light weight/Compact size
- Made in the USA -- Plano, TX
|
Source:
25 Stereo Inputs
10 Unbalanced Consumer
15 Balanced Professional
2 Dedicated Mike inputs
Impedances:
Microphone, 150 ohm
High level, 20k
External monitor, 20k
Levels:
Microphone, -65 to -50 dBm
High level, -10 to +10 dBv
External monitor, -10 to +10 dBv
SNR:
Programs, better than -90 dB at +18 dBm out
Power Source:
117 or 230 volt ac, 50 - 60 Hz
Mounting & Dimensions:
Table top with back connections
Height: 4.75" (12.07 cm)
Depth: 15.5" (39.37 cm)
Width: 27.25" (69.21 cm)
Weight: 14lbs (6.35 kg)
Shipping Weight: 28lbs (13.38kg) |
Outputs:
Stereo balanced, 2 buses
Stereo unbalanced, 2buses
Mono, balanced
Monitor amp feed, unbalanced
2 Headphones jacks
Impedances:
Programs, 600 ohm balanced 10k unbalanced
Monitor 10k unbalanced
Phone 100 ohm
Cue 300 mw at 8 ohm
Levels:
Programs, +8 dBm nominal +24 dBm maximum
Monitor -10 dBv
Phones, 10 volts at 100 ohms
Frequency Response:
Programs/Monitor, +0.2 dB 20 to 20 kHz
Phone, +0.5 dB 20 to 20 kHz
Distortion:
Programs/Monitor, less than .05% THD and IMD
Headphones/Cue, less than 1% THD and IMD |
